FITTING SYSTEM SCHÜCO AVANTEC

The new generation of fittings for Schüco AvanTec combines timeless design with user orientated technology and versatile functionality.

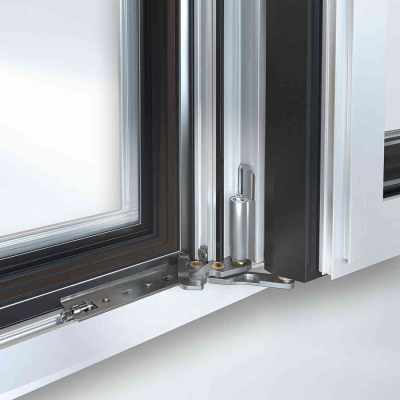

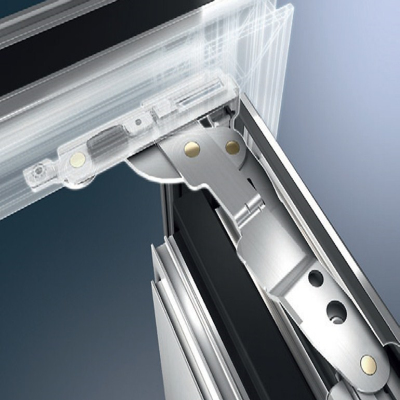

With vent weights up to 160 kg, the concealed mechanical fitting meets architectural demands for large format designs and maximum transparency.

The fittings system for inward-opening, face-fitted windows also has impressive installation properties and a modular security concept up to WK3.

Externally invisible security with Schüco AvanTec!


Category

Windows


Reference

AVANTEC

Features and benefits

  • Narrow face widths and concealed fittings ensure a streamlined appearance.

  • Vent weights up to 130Kg (286lb) or 160Kg (352lb); opening angle up to 90º.

  • Easier vent installation using installation clips.

  • Horizontal adjustment ± 1,6mm (0.06in).

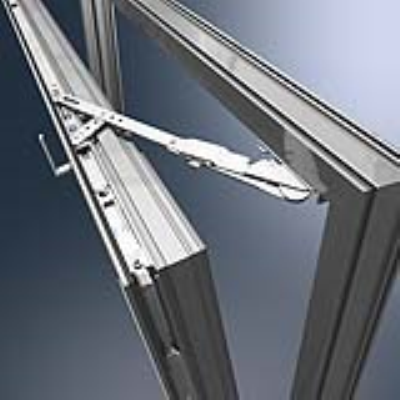

  • Self-jigging stay.

  • Only one assembly tool required because all screw fittings use one ISR size.

  • Schüco AvanTec remote control handle.

    • Avantec and TipTronic

    We possess a large range of products with CE brand and certified according to European standards (construction licence INCI nº 55957).
