Coplanar door entry system with straight 70 mm and thermally broken for commercial premises and buildings.

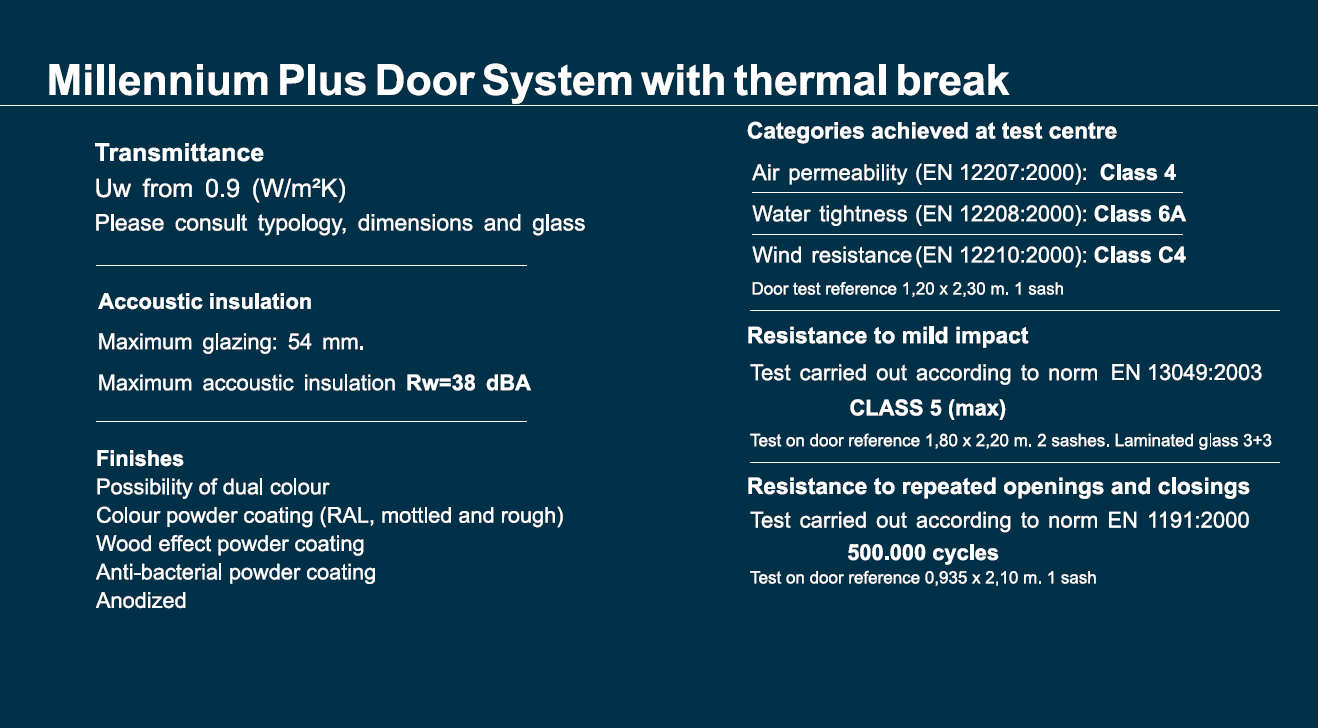

With a frame transmission value from 0.9 W/m²K, it reaches unbeatable thermal features and its great glazing capacity guarantees a máximum accoustic insulation.
Possibility of high resistance hinges (face fix or re-inforced in to the channel) capable of supporting up to 220 kgs in weight per sash.
Possibility of hidden hinges with máximum dimensions and weight per sash of 2700 mm in height, 1500 mm in width and 120 kgs. and with a máximum sash opening of 100°.
It presents solutions of finishing to the floor and compatible meeting styles with our actual systems.
These doors offer several opening possibilities:
Open in and out
Practicable 1 & 2 sashes.
Automatic Opening
Internal & external hinged single sash.
