Its base profile range of 16 mm to 250 mm in mullions and 22.5 mm to 255.5 mm in transoms, and equally with the complementary accessories, are common to all of the new CORTIZO façades.
The extensive profile range and their mechanical unions allows for all types of façades to be built (vertically, inclining, 90° corners, corners, polygonals) as well as resolving large and heavy glazing modulations.

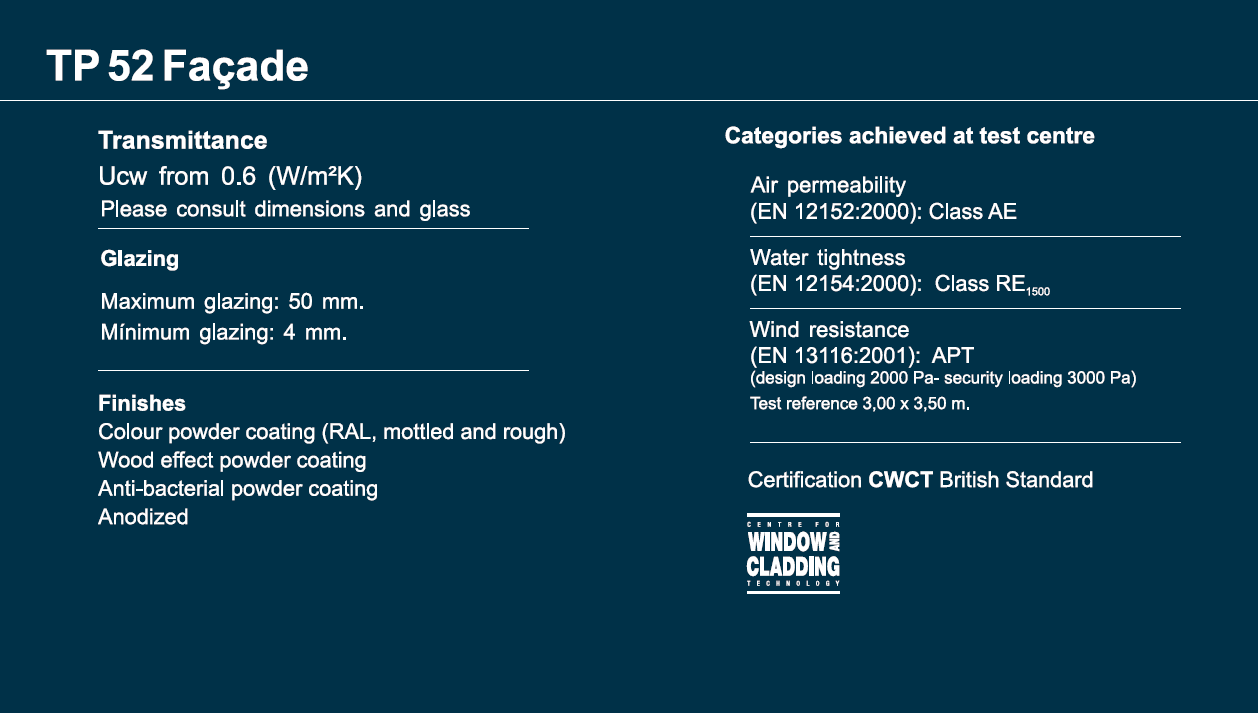

This TP 52 façade is a traditional system, also known as the Stick system. The fixing of the glazing to the supporting profiles is carried out by way of a continuous pressure profile screwed externally to a screw port incorporated in the mullions and transoms.
The glazing remains fixed at its 4 sides using this profile that is available with seperating gaskets in order to impede contact between the glazing and the metal. The pressure profile and the screws are covered by a continuous external embellishing profile known as a cover.
The maximum 30 mm thermal breaking together with its large glazing capacity of up to 50 mm and with large thicknesses and energy efficient glazing compositions give to this new range of façades some excellent thermal and accoustic features.
