SCHÜCO SLIDING SYSTEM

This system offers many design options and a wide range of colours allowing for a more traditional or modern design.

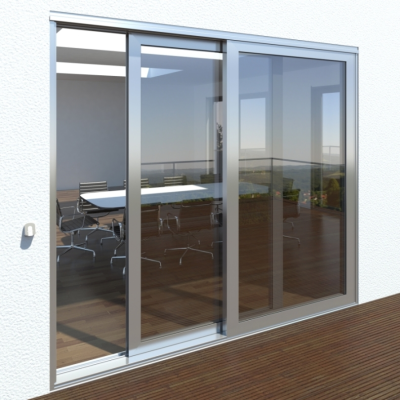

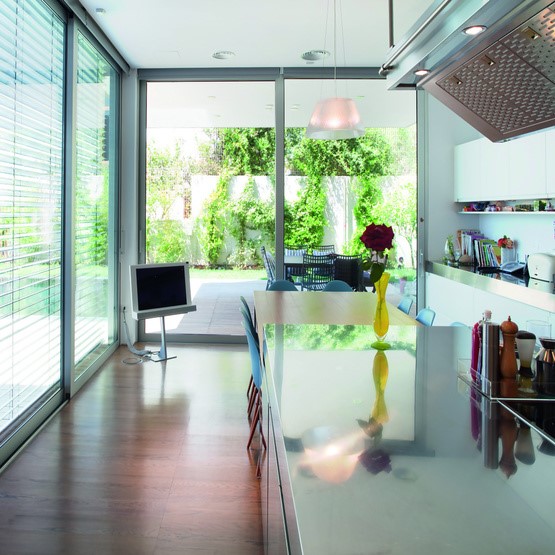

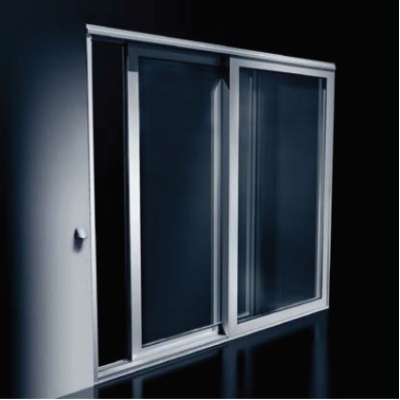

Specially developed for private houses and buildings, Schüco ASS 50 sliding system broadens perspectives for creativity and ergonomics in the universe of large windows.

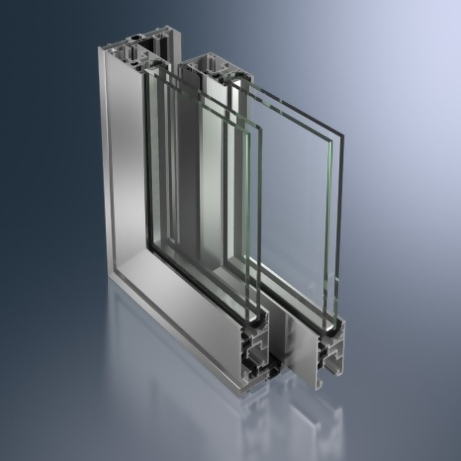

The ASS 50 thermally insulated sliding and lift-and-slide system connects the outstanding qualities of a robust vent frame with a narrow face width for rooms flooded with light.

The extra-flat profile allows better access for people with reduced mobility.


Category

Sliding System


Reference

Sistemas de Correr

The ASS 50 thermally insulated sliding and lift-and-slide system connects the outstanding qualities of a robust vent frame with a narrow face width for rooms flooded with light.

Product benefits

  • Weather tightness up to class 9A in accordance with DIN EN 12208.

  • Wide choice due to single, double and triple track outer frames.

  • Sound insulation in accordance with DIN EN ISO 140-3 and DIN EN ISO 717-1, RW ≤ dB.

  • Glazing thickness 8-32mm (0.31-1.26 in).

  • Flat outer frame profile as continuous frame.

  • Wide choice of colours – different inside and outside.


    • Schüco e-slide drive system

    The fully concealed Schüco e-slide drive system opens, closes and locks even floor-to-ceiling slide-and-lift units. For the first time the use of access control also allows access from outside.


    Features and benefits

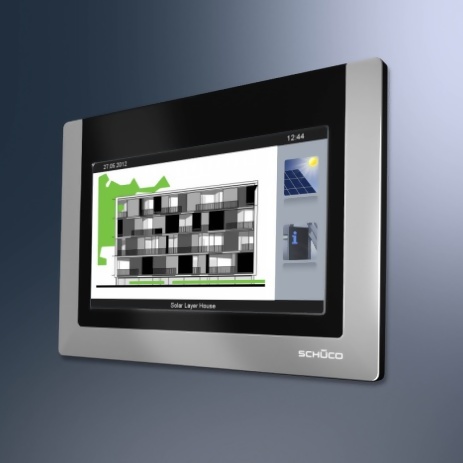

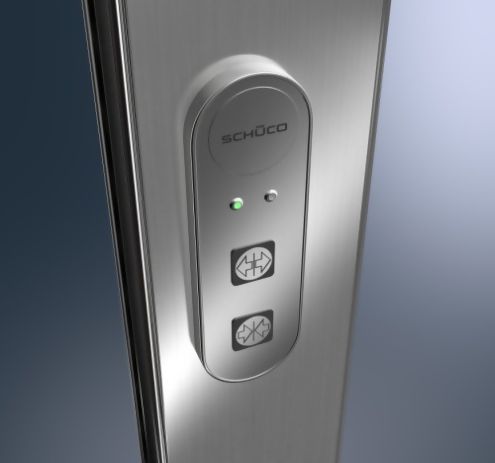

  • Easy, energy-saving control panel on the vent, external button in the room or centrally via building management technology.

  • New, handle-free design solutions with clean lines.

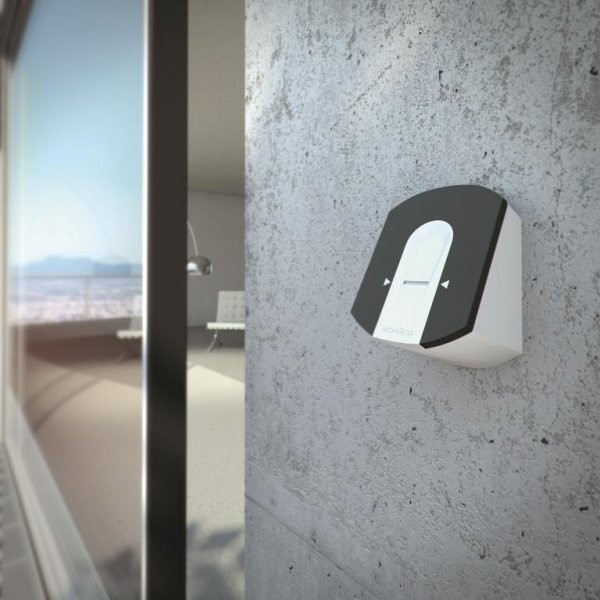

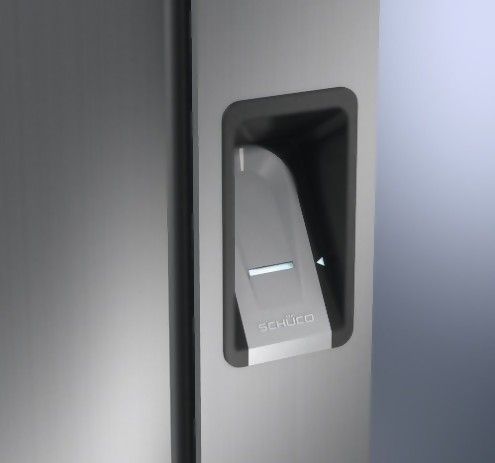

  • Coupling with fingerprint system or radio signal possible.

  • Leaf weights up to 250Kg (551lbs).

  • Leaf sizes up to 3000 x 3000mm (118,11 x 118,11in).

    • Schüco ASS 50

    We possess a large range of products with CE brand and certified according to European standards (construction licence INCI nº 55957).
