Smoke removal window PETA.ECOVISION EL, certified according to NF EN 12101-2, aluminium frames with or without thermal bridge rupture, colour finishing in natural anodized or RAL colour, glass glazing 44.2/16/44.2 (or other), 24V actuator for open/close functions.
PETA.ECOVISION EL is available in the Thermal Bridge Rupture (ih) and standard (i) versions, which can be applied in broad range of applications. The window thermal waste coefficient is selected depending on glazing and frame.
The choice of the ih profile (TBR) ensures the best performance and insulation levels. The ideal solution to achieve the thermal performance objectives.

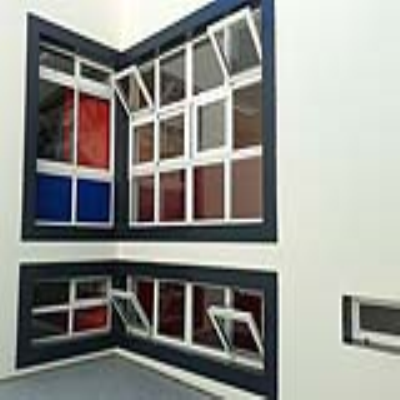

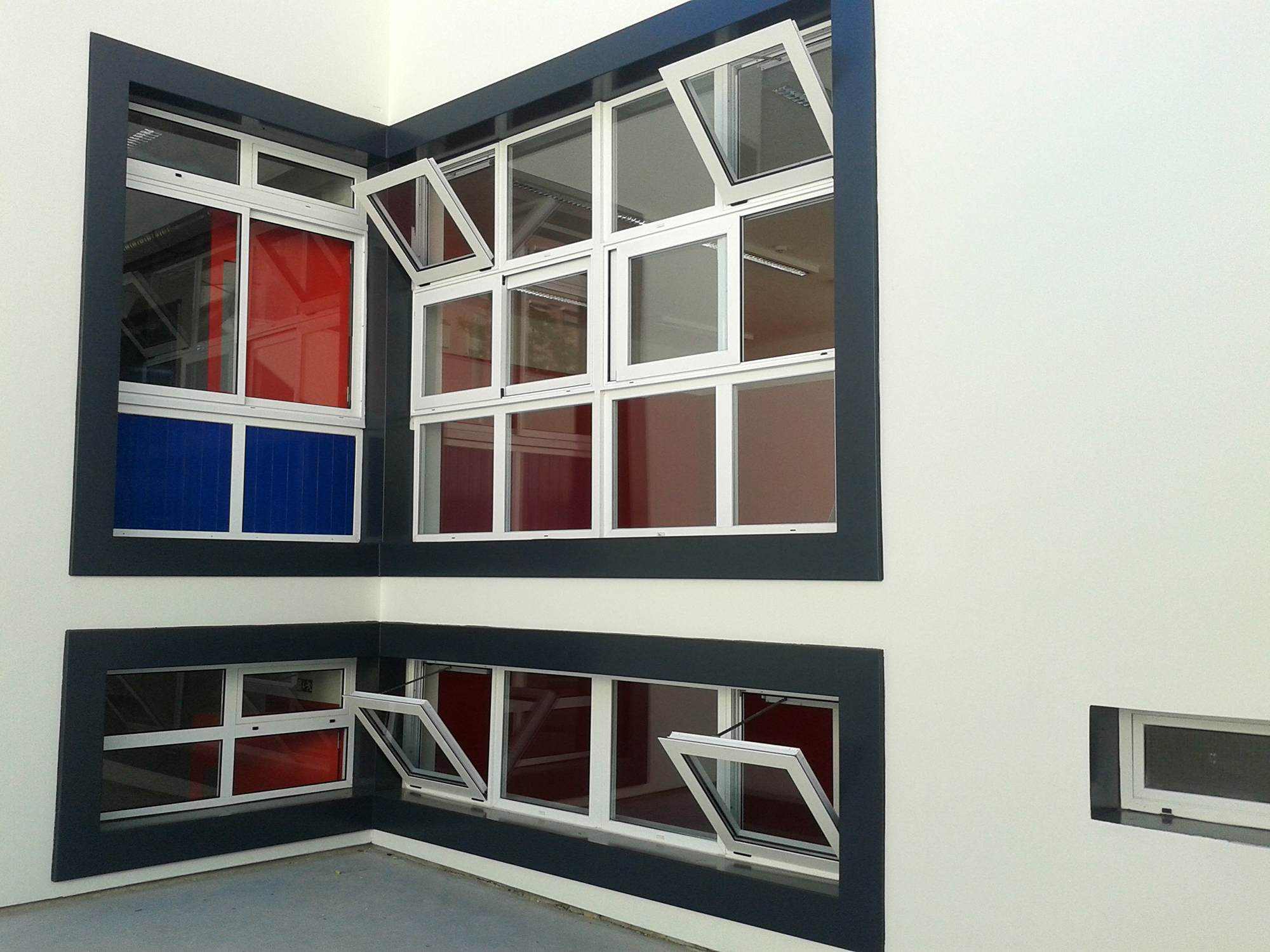

Several types of opening available: inward, outward, English and French.
Diverse glazing types: simple or safety glass, double glass, aluminium “sandwich” panel, cellular polycarbonate (PC) and AeroTech® PC.
Chain Actuators: Aesthetics and reliabilityWindows are equipped with one or 2 chain actuators. Discretely integrated in the frame, the actuator is installed on top (inward\outward openings) or on the side (for side hung windows).
- Aperture angle up to 60º (depending on window size);
- Opening time less than 60 seconds;
- Consumption: 1A – 3A per window, depending on size;
- Cables integrated in the frame for maximum concealment.
Linear Actuators: Power and efficiencyLinear actuators are installed in pairs, in parallel, on the mobile frame.
- Aperture angle up to 60º (depending on window size);
- Consumption: 1,6 – 2A per window, depending on size;
- Cables integrated in the frame for maximum concealment.

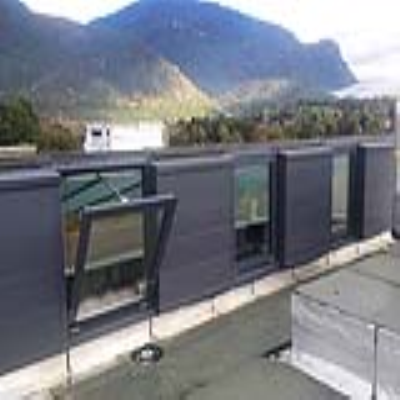

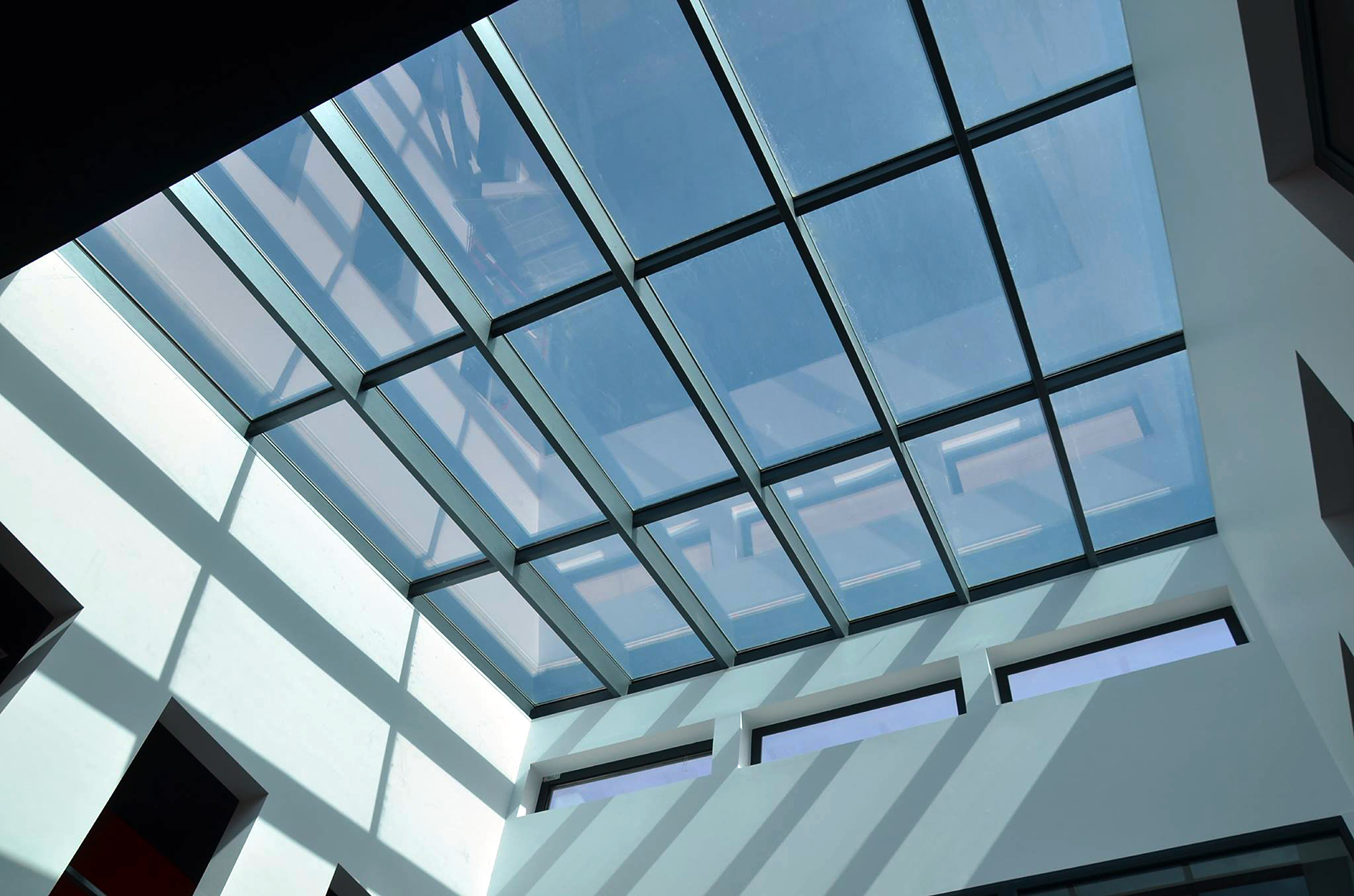

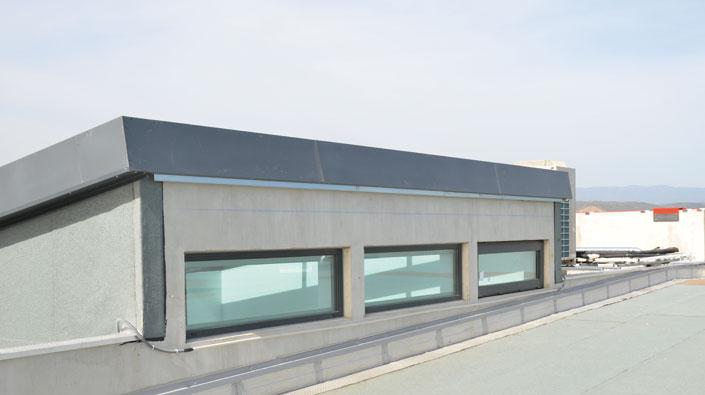

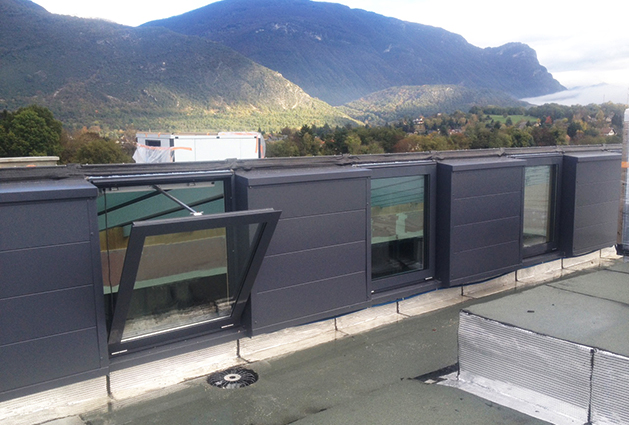

Broad range of applications for new or renovating buildingsStair boxes, circulations, atriums and courtyards, integration in SHED systems.
Buildings with public access (stores, schools and sports locations).
Commercial and industrial buildings.
Collective habitation buildings.
