PETA.ECOVISION PN is available in the TBR (ih) and standard (i) versions, which can be applied in broad range of applications.
The window thermal waste coefficient is selected depending on glazing and frame. The choice of the ih profile (thermal bridge rupture) ensures the best performance and insulation levels. The ideal solution to achieve the thermal performance objectives!
Several types of opening available: inward, outward, english and french.
Diverse glazing types: simple or safety glass, double glass, aluminium “sandwich” panel, cellular polycarbonate (PC) and AeroTech® PC.
Pneumatic Actuators: Power and effectiveness
The windows are equipped with two pneumatic actuators with 40mm diameter (1,57 in). The actuators come in pairs and are installed on the sides of the mobile frame, through a fixation console lacquered at the same RAL as the window. The copper tubing and respective accessories as well as the compressed air system are very discreet.
- Maximum aperture angle: 60º (depending on size);
- Opening time less than 60 seconds;
- Opening path: 200 (7,87 in), 300 (11,81 in), 400 (15,75 in) and 500mm (19,69 in);
- Pre-installed copper circuit;
- Optimized security and aesthetic;

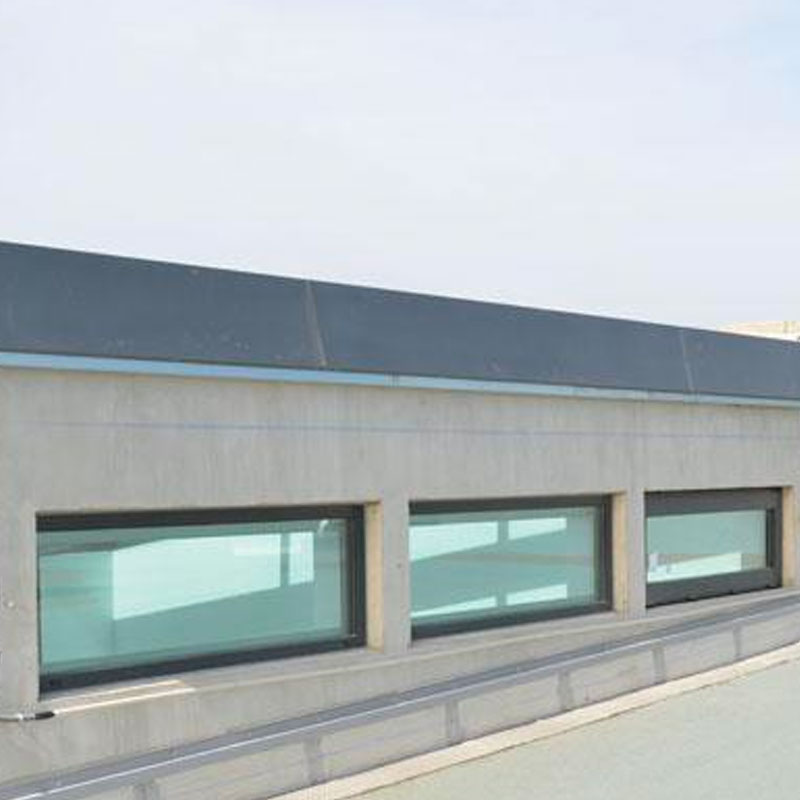

Broad range of applications for new or renovating buildings
- Stair boxes, circulations, atriums and courtyards, integration in SHED systems.
- Buildings with public access (stores, schools and sports locations).
- Commercial and industrial buildings.
- Collective habitation buildings.
